Hazardous waste incinerator aims at processing different hazardous waste through burning. At present, the rotary incinerator is most matured way to handling these waste. Beston incinerator adopts latest method to guarantee the effectiveness and stability of final result. We provide program design, shipment and related technical service now.
Types of Incinerators for Hazardous Waste
| Models | RKI-05 | RKI-12 | RKI-24 | RKI-30 |
| Capacity | 5T/D | 12T/D | 24T/D | 30T/D |
| Feeding Method | Manual | |||
| Incinerator Pressure | Negative Pressure | |||
What Kinds of Waste Can be Incinerated by Beston Incinerator
- Different kinds of medical waste: hospital waste, clinical waste, biomedical waste, health care waste, infectious medical waste, regulated medical waste,
- Chemical waste: solid, liquid, or gaseous toxic waste
- Industrial hazardous waste: liquid waste and solid waste
- Different kinds of sludge and hazardous residue: biochemical sludge, sewage sludge, salt residue,
Advantages of Beston Hazardous Waste Incineration Plants
-
Wide Application to Handle Hazardous Waste
It is suitable for handling solid, liquid, colloidal and gaseous waste. Accordingly, there is no need to change plant when investor manages other material waste.
-
Superior Design of Beston Hazerdous Waste Incineration Machine
1. Adopt inclusive strengthening heat exchanging system. It avoids the disadvantage of insufficient touch between air and waste. With this part, the combustion result is excellent. At the same time, it also prevents slagging in the incinerator and cools down slag.
2. Smoke generated in the incinerator will be burned again in the second combustion chamber. The temperature reaches to 1100℃. Accordingly, this step not only makes waste burning well but also avoid of dioxin production.
3. Made by high temperature resistance and fire-resistant material. Accordingly, it has long-term time to serve investor,
4. Having good sealed effectiveness. Firstly, good sealness makes the whole incineration process more safe. Secondly, it makes reaction more quickly.
5. Pocessing long-term running rate. All of hazardous waste incinerators can work 200 days continuously in a year. Its annual running rate reaches to 90%, which is high. And they are easy to operate and maintain under our guidelines.
-
Low Demand for Raw Material
If you choose Beston hazardous waste incineration equpment, there is nearly no requirement for water content and size of mateirals. Therefore, investors don’t need to get other machine. And the whole hazerdous waste incineration costs are not hign.

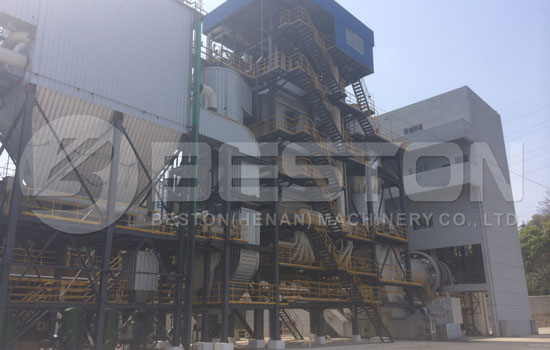

Hazardous Waste Incinerator Manufacturers
Beston, as hazardous waste incinerator manufacturer, is always working for a safe and effective hazerdous waste incineration system. In everyyear, we took part in the exhibitions in different countries. We showed our environmental-friendly equipment to investors. Contact us or pay attention to us to get newest status.
Hazardous Waste Incineration Process
There is a short process description for reference. Please contact us to get detailed information to make sure the safe and efficient operation.
-
Feeding System
Open the blower to clean residual gas and other flammable and explosive gas. Then open induced draft fan.
After five minutes later, the combustion fuel – natural gas will be transported to combustion chamber by flue and lighted by ignition device. The heat makes temperature rise up in the incinerator and second combustion chamber.
The hazardous waste is transported to the top of incinerator by water cooled hydraulic device.
-
Hazardous Waste Incineration System
The most appropriate temperature for incineration is 800℃. In this process, water content evaporates. And some materials are generated, including volatile matter, gas, waste smoke and residue. The residue is discharged by discharging system in the end of incinerator.
The waste gas enters into second combustion chamber to burn again when temperature reaches to 1100℃. This procedure makes the incineration more sufficient. Therefore, the purpose of smokeless, odorless and non-secondary pollution can be achieved.
-
Smoke Purifying System
After coming out from second combustion chamber, waste smoke goes into waste heat exchange device to heat soft water. Meanwhile, the ash in the smoke will be precipitated.
Note: contained technology SNCR + semi-drying + full drying + bag dedusting device + wet smoke scrubber
-
Waste Smoke Discharging System
Smoke goes to reheating device. After heated to above 130℃ by high-temperature steam gas, it is discharged through chimney.
Among many management methods, hazardous waste incinerator is surely the most green and cost-effective one. The concerned issue is finding a good machine. Beston incinerators with top-rated quality is easy to install and run. Leave your message to get your project plan now.
